PRECITUBO technology allows us to manufacture special models to meet the requirements of each client, offering a wide variety of grades, gauges and tube diameters.

MANUFACTURED PRODUCTS

Heat Exchanger and boiler tube, with application in:

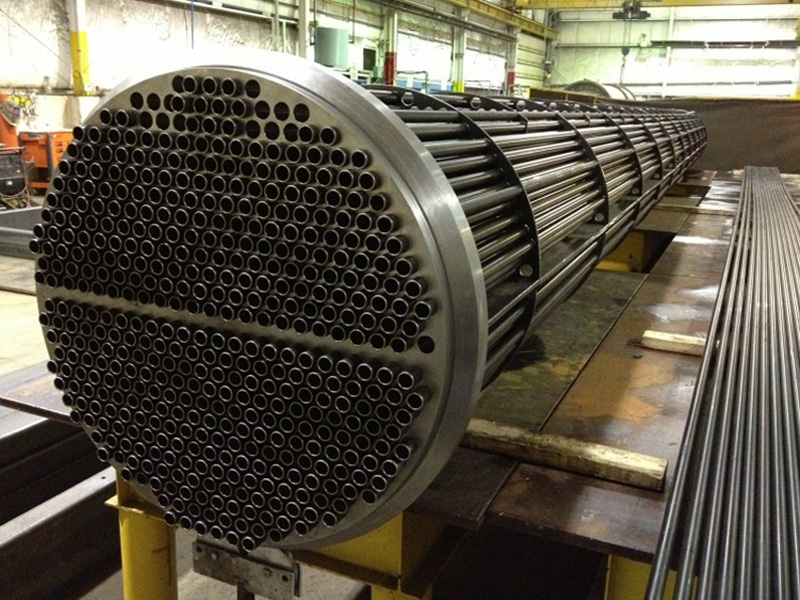

  • Heat exchangers for high and low pressure service

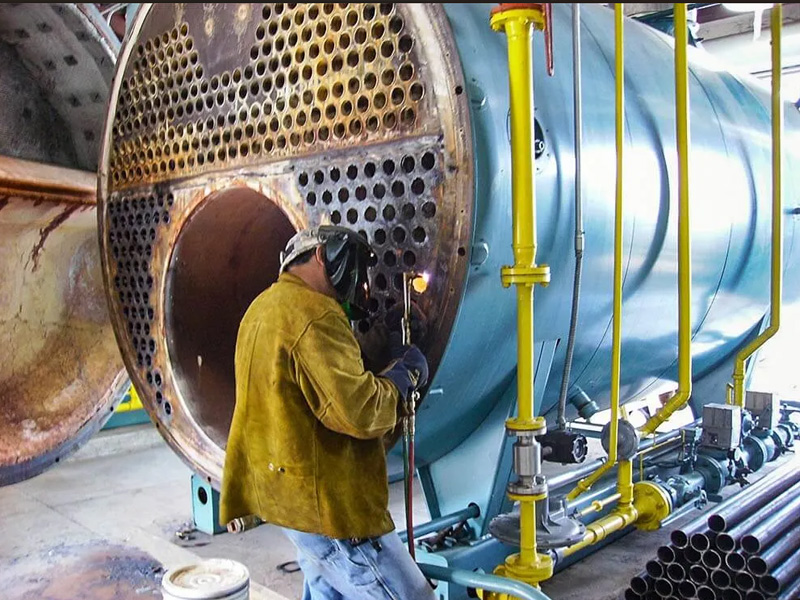

  • High and low pressure boilers
  • Condensers
  • Feed water heaters
  • Superheaters

Supply of material for any Sugar Mill or for Mechanical or Hydraulic use:

  • Hydraulic lines
  • Steam lines
  • Mechanical parts
  • Structural
  • Shock Absorber Cylinders
  • Hydraulic jacks

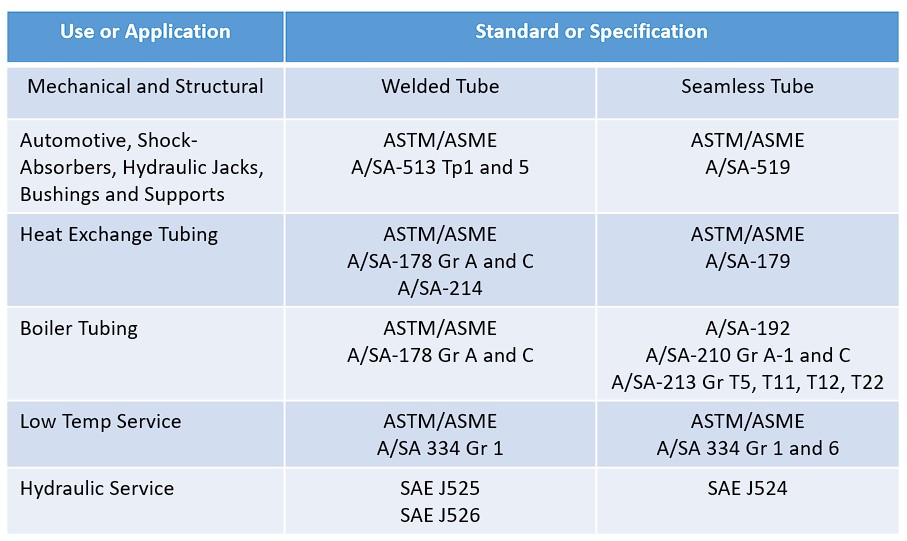

SA 513 T1 carbon steel tube

SA 513 Tp1 are carbon steel WELDED tubes that are resistance welded (electric resistant welded) for use as mechanical tubes very commonly installed in the air preheaters of steam boilers and for structural purposes.

SA 214 carbon steel tubes

The SA 214 are carbon steel tubes with a seam (WELDED) that are resistance welded (electric resistant welded) and are used for condensers, heat exchangers, air coolers, as well as different equipment whose purpose is heat transfer.

SA 178 Gr A carbon steel tubes

SA 178 Grade A are carbon steel welded tubes that are resistance welded (electric resistant welded). They are mainly used in low-pressure boilers, the so-called smoke tube and water tube packages.

SA 179 carbon steel tubes

SA 179 Carbon Steel tubes are seamless carbon steel tubes manufactured through the cold drawn process. They are used for condensers, heat exchangers, air coolers, as well as various equipment intended for heat transfer. They are also used in boiler flue ducts, boiler tubes, and superheater ducts.

SA 192 carbon steel tubes

The SA-192 are seamless carbon steel tubes manufactured through the cold drawing process. They are used in high-pressure boilers for the fabrication of various pressure parts such as economizer elements, superheater, reheater, boiler water wall, and steam tubing.

SA 210 A1 and C carbon steel tubes

The SA-210 A1 and C are seamless carbon steel tubes manufactured using the cold drawn process and are used in high-pressure boilers for the fabrication of various pressure parts such as economizer elements, superheater, reheater, boiler water walls, and steam tubing.

SA 213 T5, T11, and T22 tubes made of ferritic and austenitic alloy steels

The SA-213 T5, T11, and T22 are seamless intermediate carbon alloy steel tubes manufactured through the cold drawn process. They are used in high-pressure boilers for the fabrication of superheater elements and heat exchangers.

DETAILS

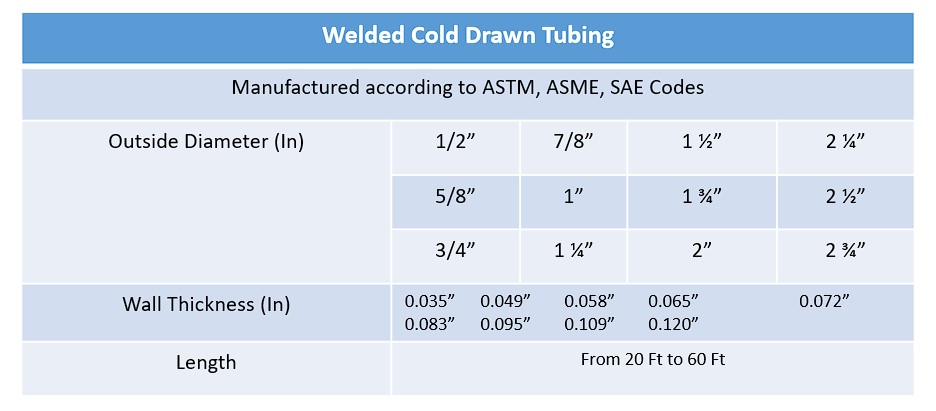

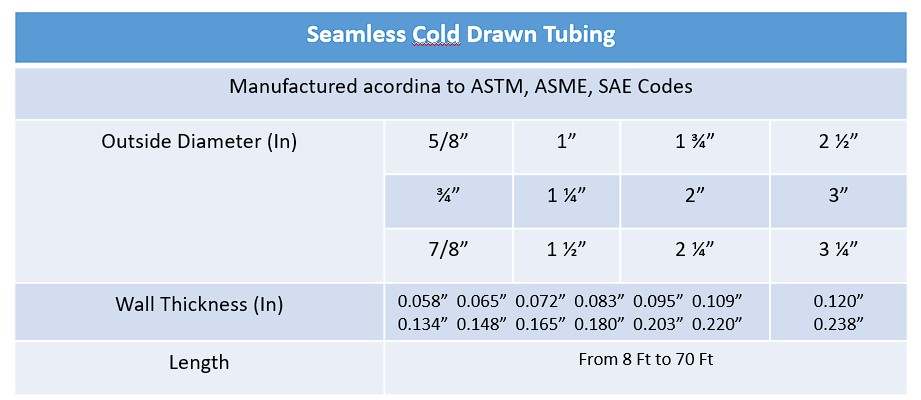

O.D. size from 1/2” to 4” and thickness from 0.049” to 0.238”
